EFS Recon 4WD Winch 10000lb

Size
Key Features Specifications

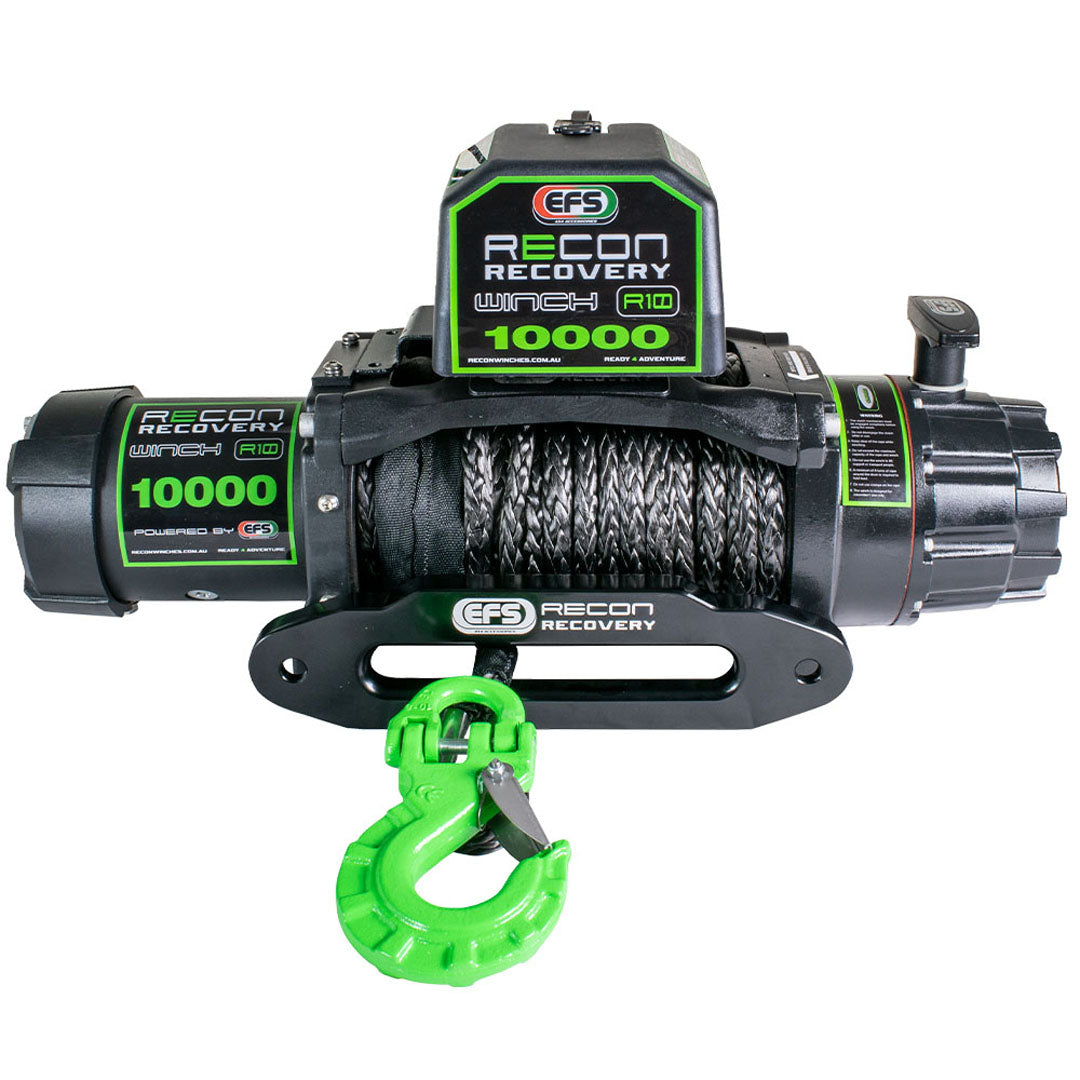

The EFS Recon 10 10000lb electric winch features 25 meters of synthetic rope with a breather kit.

The EFS Recon R10 Winch has been developed with a super fast retrieve rate and boasts a 10,000 LBS rated single line pull. The R10 has a full load automatic brake with a 158:1 gear ratio and comes complete with all pictured accessories.

Winch specifications:

  • 10,000lbs / 4,540kg rated single line pull
  • 6.0HP 12volt series wound electric motor Waterproof motor/gearbox
    Breather
  • 3 stage zinc plated hardened planetary gears - 158:1 gear ratio
  • Rotating ring gear clutch with T-handle clutch engagement
  • 18,000lbs SYNTUFF synthetic multistrand rope with high strength anti-bind nano technology. Abrasion resistant – 10mm diameter – 25m length.
  • Full load automatic brake located at the motor side of the drum. Designed for synthetic rope – no heat build up in the drum
  • Recommended battery 650CCA minimum for winching
  • Battery leads: 1.83m. Mounting bolt pattern: 254mm x 114.3mm. Fairlead: Aluminium. Control box relay: 450A. Waterproof. Incl wireless & wired remote 3.6m lead

We recommend a battery isolation switch to be used
